J Type Simplex – Bayonet Type

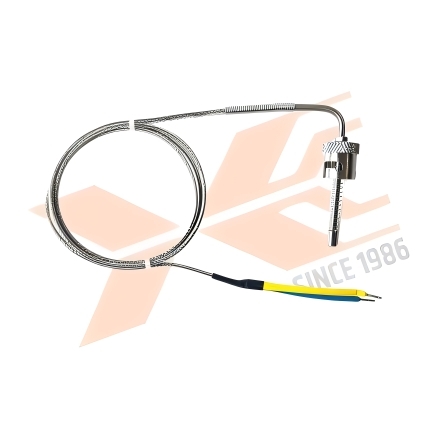

YOG J Type Simplex – Bayonet Type Temperature Transducer is engineered for reliable and accurate temperature measurement in industrial applications. Constructed with precision, this sensor features a 6mm x 10mm tapered tube in SS 304, providing durability and resistance to corrosion.

An extension of 4mm x 100mm in SS 304 ensures optimal sensor reach and stability, while the L-bend after the stopper ring design supports effective installation and alignment. The termination includes a transition crimp and taper spring, ensuring robust connectivity under demanding conditions.

It comes with a 1-meter FG/FG/SS 7/36 cable, delivering reliable signal transmission and mechanical strength, ideal for continuous operation in harsh environments.

Product Highlights:

• Type: J Simplex (Bayonet Type)

• Tube OD: 6mm x 10mm Taper (SS 304)

• Extension: 4mm x 100mm (SS 304)

• Bend: L Bend after Stopper Ring

• Termination: Transition Crimp & Taper Spring

• Cable: FG/FG/SS 7/36, 1 Meter
