K Simplex Type – Needle Type

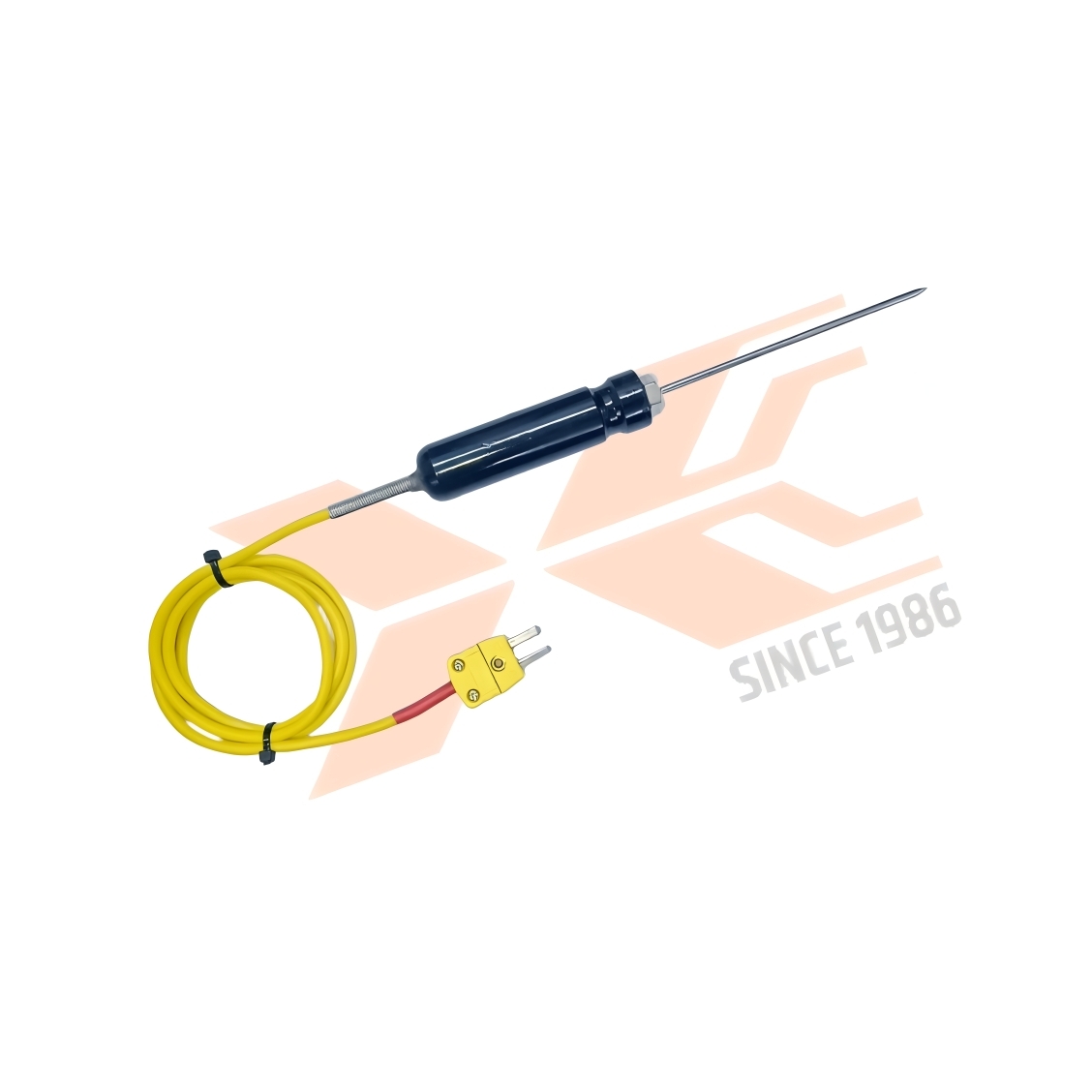

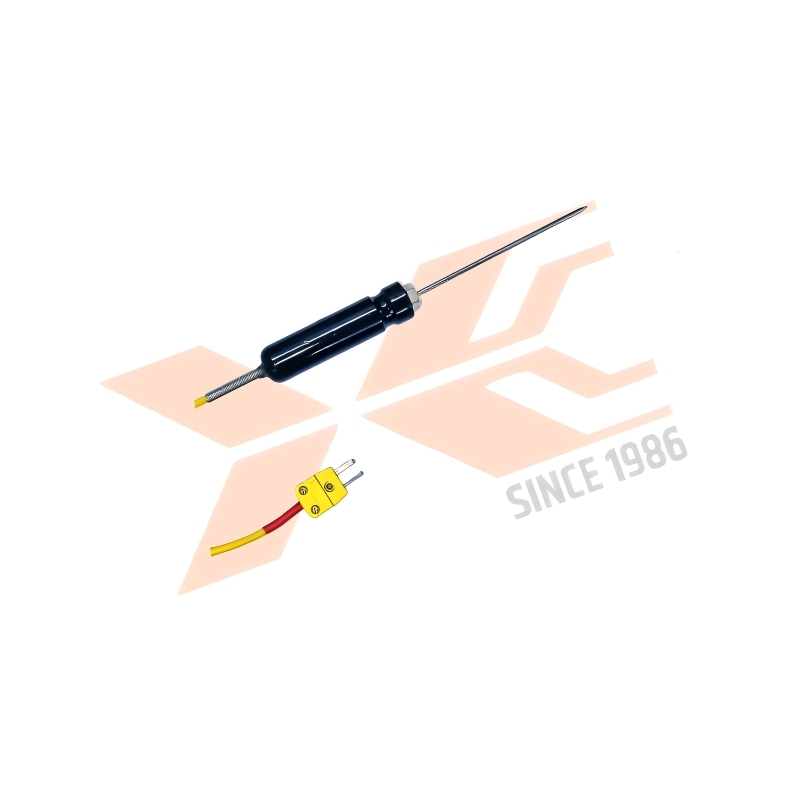

K-Type Simplex Needle Temperature Transducer – 3mm x 100mm | SS316 | Grounded Junction | Mini Connector

Designed for fast-response temperature measurement in compact or hard-to-reach areas, the YOG K-Type Simplex (Grounded) Needle Temperature Transducer delivers reliable performance in environments up to 300°C. Featuring a 3mm OD and 100mm long SS316 stainless steel sheath, this sensor combines strength, corrosion resistance, and precision in a slim, needle-style probe.

The transducer includes a nylon handle with integrated spring for enhanced grip, strain relief, and protection against cable fatigue during frequent use. This makes it ideal for handheld or insertion-based applications.

Electrical connection is made via a K-Type mini male connector, offering quick, secure, and standard-compliant connectivity across most data logging and process control devices. The unit is supplied with a 1-meter cable, constructed using Teflon-insulated, silicon-sheathed 7/36 wire, providing flexibility, heat resistance, and long service life.

🔧 Specifications:

• Make: YOG

• Sensor Type: K-Type Thermocouple, Simplex (Grounded)

• Temperature Range: 0 to 300°C

• Tube Size: 3mm OD × 100mm Length

• Material: SS316 Stainless Steel

• Design Type: Needle Style Probe

• Termination: Nylon Handle with Spring

• Connector Type: K-Type Miniature Male Connector

• Cable Type: Teflon/Silicon (7/36 Gauge), 1 Meter

Perfect for laboratories, HVAC, food processing, or any application requiring rapid and accurate surface or insertion temperature readings.
