RTD Simplex Type – 6mm X 150mm with Transmitter

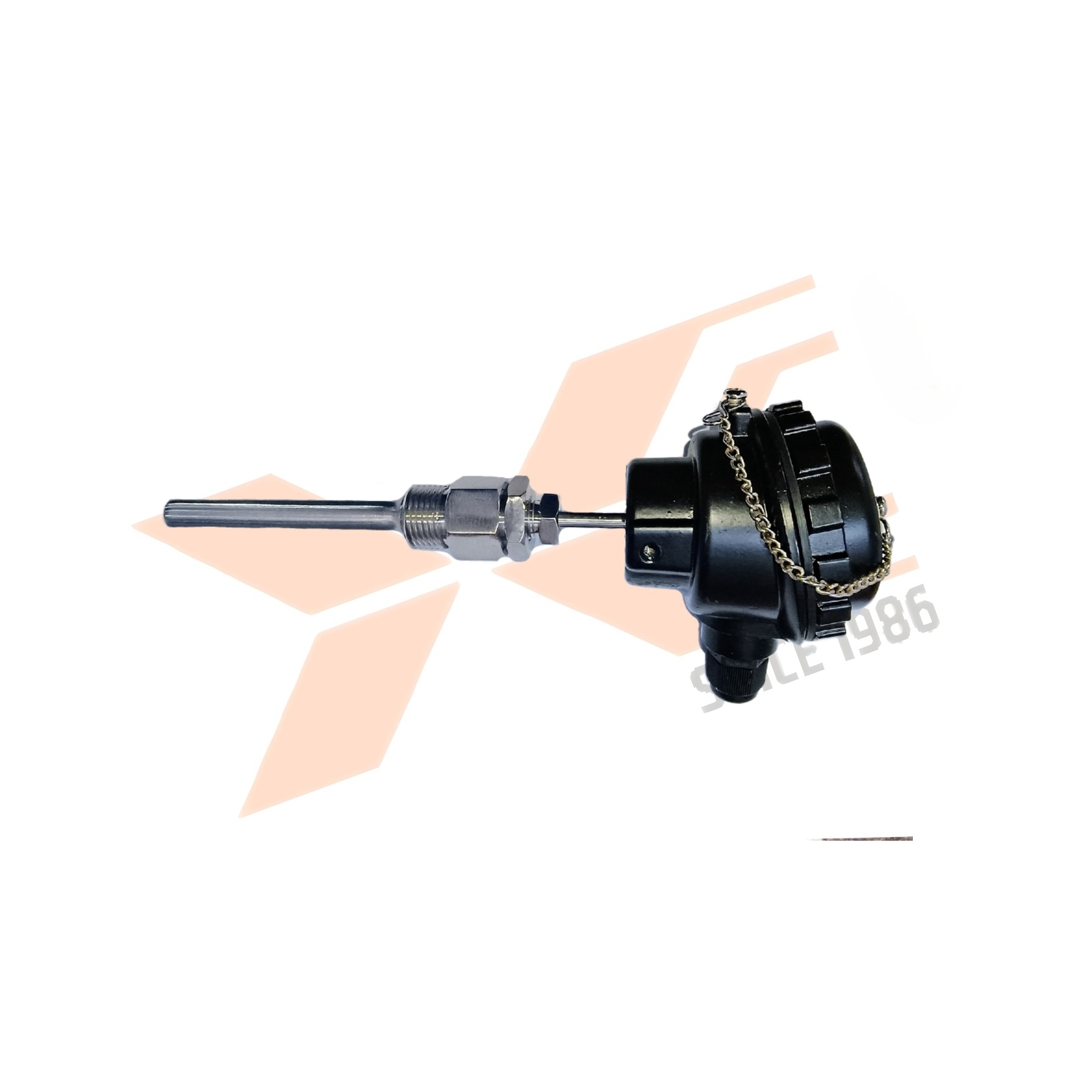

YOG RTD Simplex Type Temperature Transducer (6mm x 150mm) with Integrated Transmitter

Engineered for precision and durability, this RTD Simplex Type temperature transducer by YOG is designed to deliver accurate readings in demanding industrial applications. It features a 6mm x 150mm probe constructed from corrosion-resistant SS316, ensuring excellent performance across a temperature range of 0 to 200°C.

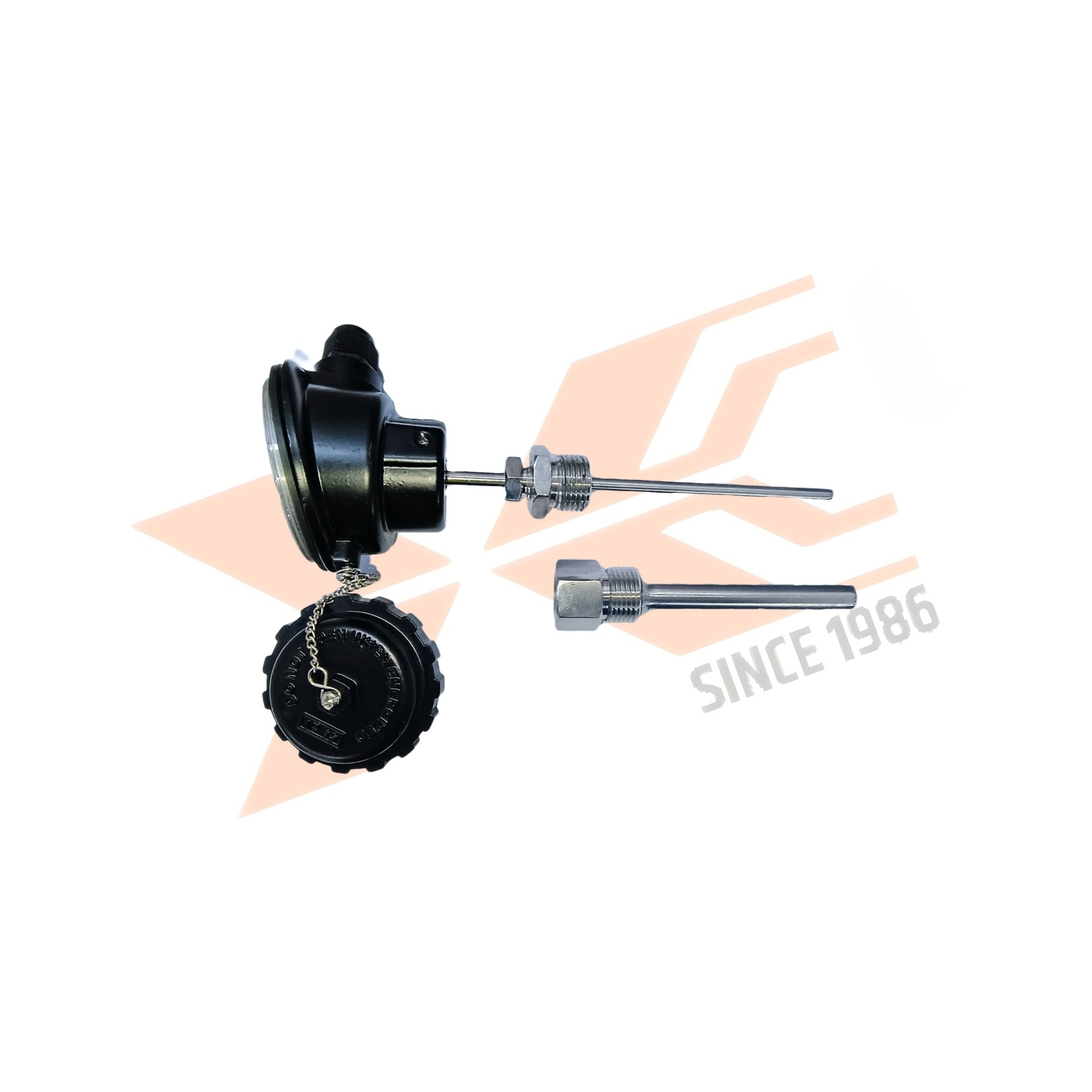

The unit includes a head-mounted transmitter that converts the PT-100 RTD input into a standard 4–20 mA output, enabling seamless integration with control systems. The fabricated thermowell (OD 12.7mm, SS304) provides additional protection and reliability in process environments. With an aluminum termination head, 24 VDC supply, and a 1/2″ BSP (Male/Female) mounting connection, this transducer is both robust and easy to install.

Perfect for industrial automation, process control, and instrumentation applications, this RTD assembly offers long-term stability and efficiency.

🔧 Technical Specifications:

• Make: YOG

• Type: RTD Simplex

• Temperature Range: 0 to 200°C

• Probe Size: 6mm x 150mm (SS316)

• Termination: Aluminum Head

• Mounting: 1/2″ BSP (Male/Female)

• Thermowell: Fabricated, OD 12.7mm (SS304)

• Input: PT-100 RTD

• Output: 4–20 mA

• Supply Voltage: 24 VDC

• Transmitter Type: Head Mounted

• Process Connection: 1/2″ BSP (M) x 1/2″ BSP (F)

  ---
