Temp. Indicator 2.3″

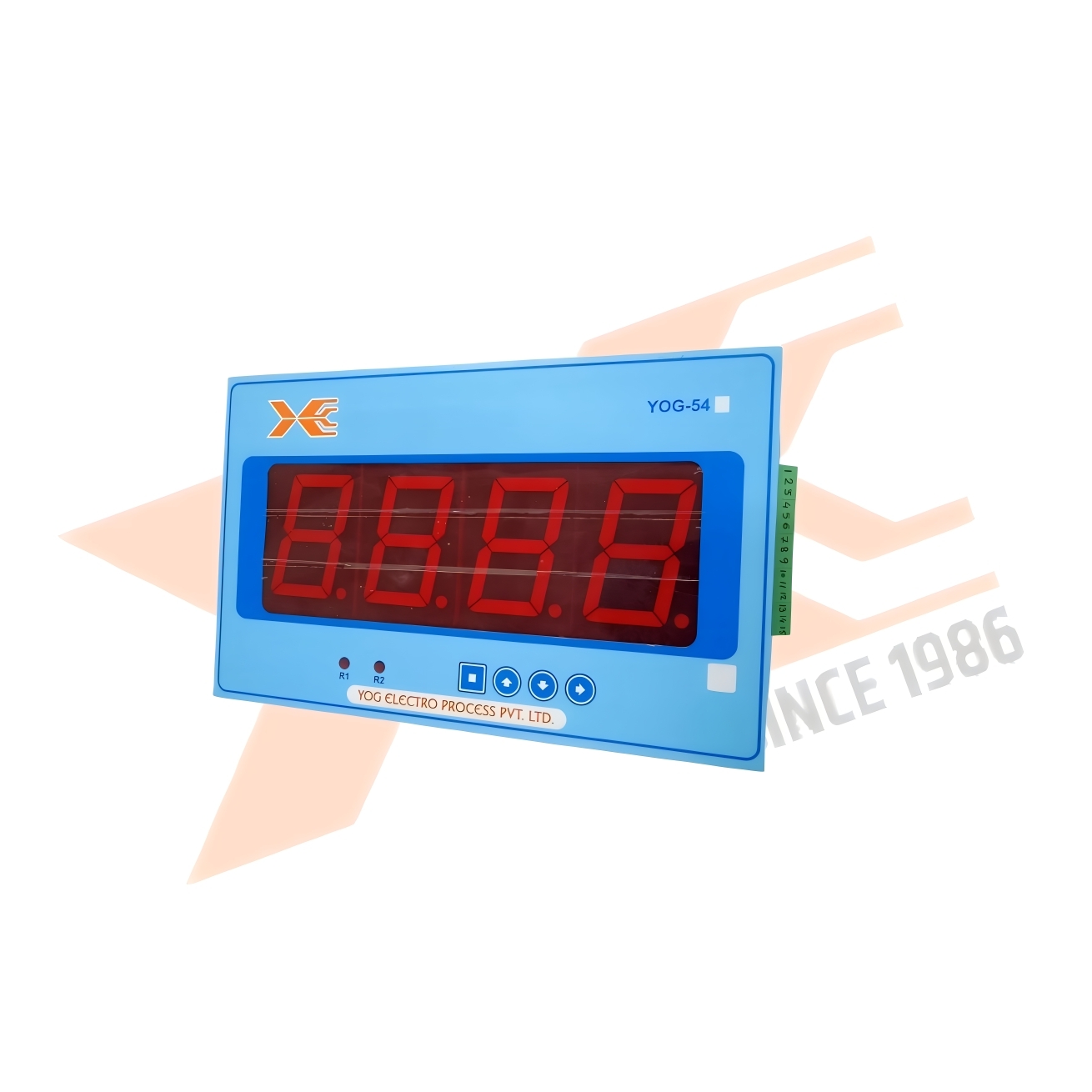

Temperature Indicator with 2.3″ LED Display – YOG-54 | RTD/Thermocouple Input & Relay Output

The YOG-54 temperature indicator is a wall-mounted, large-format display unit designed for real-time monitoring in industrial environments where visibility and reliability are essential. With input support for RTD (Pt100) and Thermocouples (J, K, R, S), this unit delivers precise readings via a bold and clear 2.3-inch 4-digit 7-segment LED display.

Ideal for shop floors, production lines, and remote monitoring points, the unit operates on a 230V AC, 50Hz ±10% supply and offers 1 or 2 relay outputs (5A at 230V AC) for process control or alarm triggering.

It supports the following input ranges:

• RTD (Pt100): –50 to 600°C

• Thermocouple J: –50 to 700°C

• Thermocouple K: –50 to 1250°C

• Thermocouple R/S: 0 to 1600°C

With a resolution of 1°C or 0.1°C for RTD, and 1°C for thermocouples, the indicator ensures reliable accuracy of ±0.25% of FSD across all input types. It operates in environments from 0°C to 55°C and is designed for wall mounting, allowing easy installation in various industrial settings.

This unit is perfect for process monitoring, large-area visibility, and alarm-based control systems.

📦 Product Specifications:

• Make: YOG

• Model: YOG-54

• Input: RTD (Pt100), Thermocouple (J/K/R/S)

• Output: 1 or 2 Relay Outputs (5A, 230V AC)

• Range:

  • RTD: –50 to 600°C

  • J Type: –50 to 700°C

  • K Type: –50 to 1250°C

  • R/S Type: 0 to 1600°C

• Supply Voltage: 230V AC, 50Hz ±10%

• Resolution:

  • RTD: 1°C or 0.1°C

  • Thermocouple: 1°C

• Accuracy: ±0.25% of FSD

• Operating Temperature: 0°C to 55°C

• Display: 4-Digit, 7-Segment LED, 2.3″

• Mounting Type: Wall Mount

✅ Need relay customization or different mounting options?
📧 [email protected] | 📞 +91 93710 15550
